Metal Detectable

  • Metal Detectable

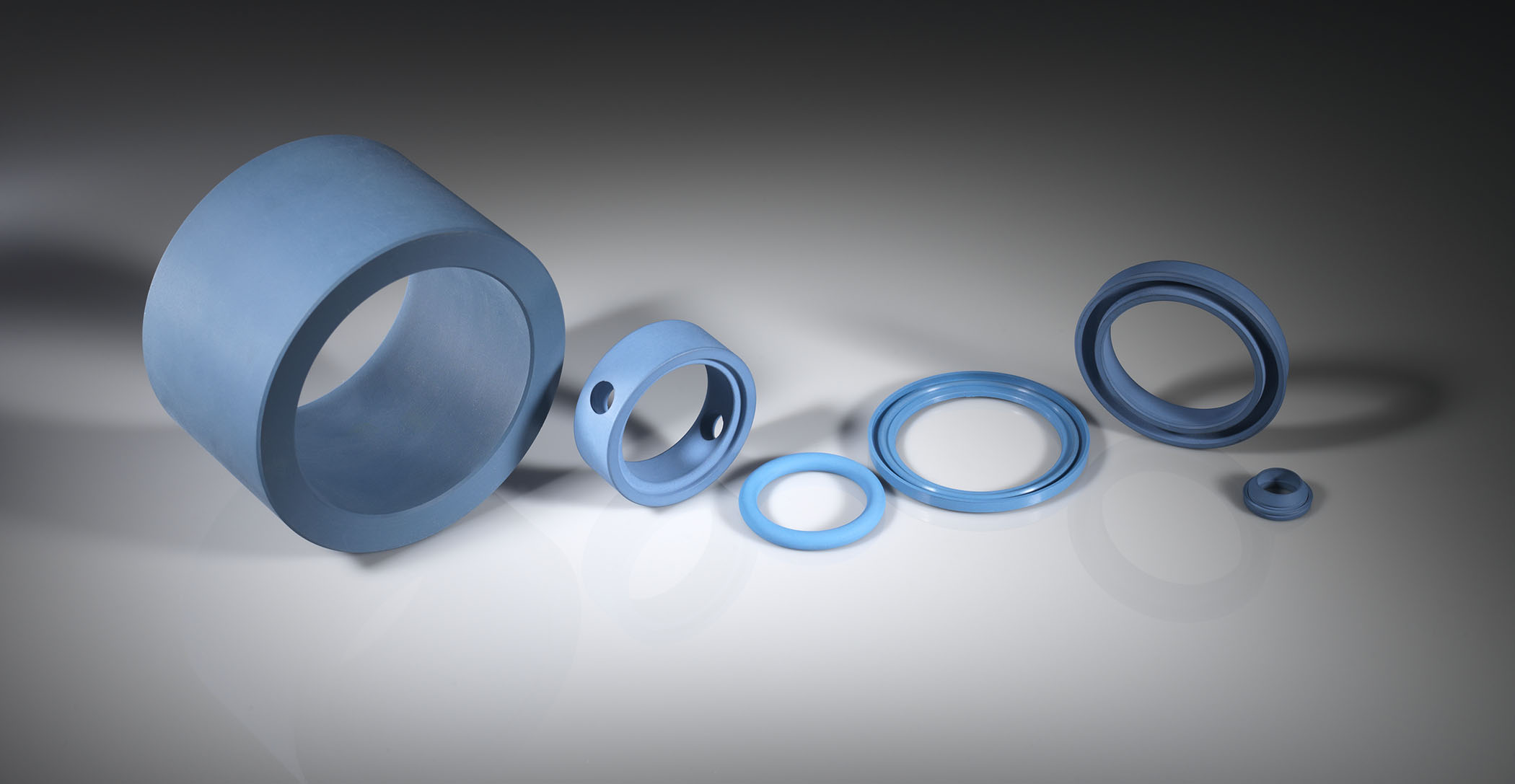

    M Seals holds an extensive range of semi-finished metal detectable rubber, metal detectable polyurethane, metal detectable plastics and metal detectable PTFE in stock to enable rapid turnaround of critical food-safe sealing products. These are used by OEM machinery manufacturers, food and beverage production facilities and pharmaceutical plants around the world.

    FDA compliant materials

    All of the metal detectable materials we offer are blue in colour for simple visual identification. Some of the materials have been independently tested by a leading metal detection machinery manufacturer, with sample seal fragments as small as 2mm being identified on a process line running at a speed of 25 metres per minute.

    The use of the correct metal detectable material can give customers compliance to FDA and EU food standards and allows instant recognition of batch contamination, preventing costly product recalls and possible consequential damage to company reputation.

    Data sheet
    Temperature
    Hardness
    Description
    EC805
    Metal Detectable FDA Compliant EPDM    		 Min: -40°C
    Max: +140°C

    67 Shore A

    A metal and X-Ray detectable, peroxide cured EPDM; the material of choice for seals and other elastomeric parts being used in food contact applications where contamination is absolutely unacceptable.
    Approvals: CFR 177.2600 FDA Compliant
    HC325
    Metal Detectable FDA Compliant HNBR    		 Min: -35°C
    Max: +150°C

    78 Shore A

    		 The material of choice for seals and other elastomeric parts which require excellent chemical and/or fluid compatibility while working in food and beverage applications where contamination is unacceptable.
    Approvals: CFR 177.2600 FDA Compliant
    NBR-MD89
    Metal Detectable FDA Compliant Blue NBR    		 Min: -30°C
    Max: +100°C    		 89 Shore A A metal detectable NBR; a good choice for seals and other elastomeric parts which require fair chemical and/or fluid compatibility while working in food and beverage applications where contamination is unacceptable.
    Approvals: CFR 177.2600 FDA Compliant
    PKMD-BLD86
    Blue Metal Detectable PEEK    		 Min: -50°C
    Max: +260°C    		 86 Shore A

    A high-performance PEEK material that has been modified through the addition of a metal detectable ingredient and pigmented blue in colour for easier identification.
    SC826
    Metal Detectable FDA Compliant Silicone    		 Min: -60°C
    Max: +200°C    		 60 Shore A An excellent material choice for seals and other elastomeric parts which require excellent chemical and/or fluid compatibility while working in static food and beverage applications where contamination is absolutely unacceptable.
    Approvals: CFR 177.2600 FDA Compliant
    UHM-MD-D62
    Blue Metal Detectable Ultra High Molecular Weight Polyethylene    		 Min: -100°C
    Max: +80°C    		 62 Shore A

    A member of the thermoplastic polyethylene group that has been modified through the addition of a metal detectable ingredient and pigmented blue in colour for easier identification.

    Any questions?

    Please talk to our technical team if you require help identifying the correct material for your application or have any questions about your sealing requirements.

    Contact us
