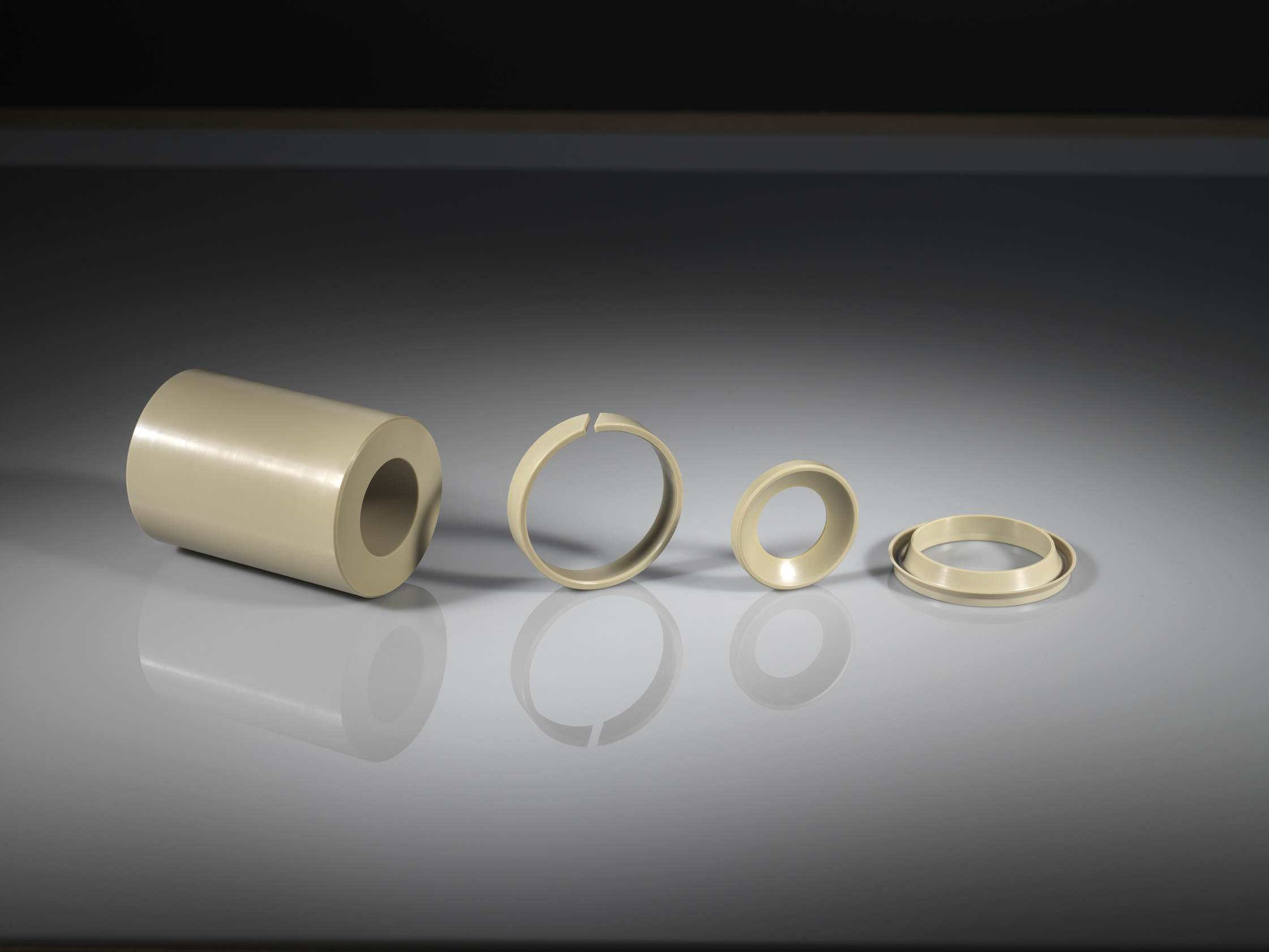

Advanced engineering plastics (PEEK / PEKK / VESPEL™)

  • Advanced Engineering Plastics
    (PEEK / PEKK / VESPEL™)

    M Seals holds an extensive range of semi-finished advanced engineering plastic materials in stock to enable rapid turnaround of finished products to our customers.



    Advanced engineering plastics advantages

    Advanced engineering plastics such as PEEK, PEKK, PBI and others can offer many advantages over metallic materials when chosen correctly. They have excellent mechanical and thermal properties, while providing superior chemical and corrosion resistance.

    Listed below are just a few of the advantages of using advanced engineering plastics in place of metallic components:

    • Elimination of lubrication, enabling dry running
    • Reduced wear on mating parts
    • Reduced friction, providing faster operating speeds
    • Lower torque values, resulting in reduced power consumption
    • Improved corrosion and chemical resistance
    • Compliance with industry specifications such as Norsok M-710

    Choosing the correct material

    When choosing the best advanced engineering plastic for your application, we must consider your application conditions, such as temperature, load, speed and chemical compatibility.

    Refer to our material data sheets or contact us for more information.

    Data sheet
    Temperature
    Hardness
    Description
    PKV-CRD86
    Unreinforced Virgin PEEK    		 Min: —
    Max: +250°C    		 88 Shore D

    A high-performance unreinforced virgin PEEK material with excellent thermal resistance, high compressive strength, low wear properties and low creep values.
    PKV-CRD86-M710
    Norsok Compliant Unreinforced Virgin PEEK    		 Min: -50°C
    Max: +260°C

    82 – 90 Shore D

    		 A high-performance Norsok M710 compliant unreinforced virgin PEEK material with excellent thermal resistance, high compressive strength, low wear properties and low creep values.
    Approvals: Norsok M-710 compliant
    PKFC30-BLK87
    Carbon Fibre Filled PEEK    		 Min: —
    Max: +260°C

    89 – 91 Shore D

    A high-performance carbon fibre reinforced PEEK material with excellent thermal resistance, high compressive strength, low wear properties and low creep values.
    PKFC30-BLK87-API
    Compliant Carbon Fibre Reinforced PEEK    		 Min: —
    Max: +260°C

    89 Shore D

    		 A high-performance carbon fibre reinforced PEEK material with excellent thermal resistance, high compressive strength, low wear properties and low creep values.
    Approvals: ISO 10423 Appendix F.1.13.5.2 (API 6A)
    PKBG30-BRM85
    Reinforced Lubricated-PEEK    		 Min: —
    Max: +260°C

    85 Shore D

    A modified PEEK which has been reinforced with fillers of carbon fibre and lubricants. This provides the material with excellent thermal resistance, higher compressive strength, lower wear properties and lower creep values.
    PKFG30-CRD89
    Glass Fibre Filled PEEK    		 Min: —
    Max: +260°C

    89 Shore D

    A high-performance glass fibre reinforced PEEK material with excellent thermal resistance, high compressive strength, low wear properties and low creep values.
    PKFG30-CRD89-M710
    Norsok Compliant Glass Fibre Filled PEEK    		 Min: —
    Max: +260°C

    89 Shore D

    		 A high-performance Norsok M710 compliant glass fibre reinforced PEEK material with excellent thermal resistance, high compressive strength, low wear properties and low creep values.
    Approvals: Norsok M-710 compliant
    PKTFE-CRD84
    PTFE Filled PEEK    		 Min: -50°C
    Max: +250°C

    78 Shore D

    A high-performance PTFE lubricated PEEK material with excellent sliding ability, excellent thermal resistance, high compressive strength, low wear properties and good chemical resistance.
    PKV-BLKD82
    Black Pigmented Virgin PEEK    		 Min: -50°C
    Max: +250°C

    82 Shore D

    A high-performance unreinforced virgin PEEK material that has been pigmented black in colour. It has excellent thermal resistance, high compressive strength, low wear properties and low creep values.
    PKV-BLK83-M710
    Black Norsok Compliant Unreinforced Virgin PEEK    		 Min: -50°C
    Max: +250°C

    80 – 85 Shore D

    		 A high-performance Norsok M-710 compliant virgin PEEK material which has been modified with a black pigment. It has excellent thermal resistance, high compressive strength, low wear properties and low creep values.
    Approvals: Norsok M-710 compliant
    PKGRF-BLKD85
    Graphite Filled PEEK    		 Min: -50°C
    Max: +260°C

    85 Shore D

    A high-performance graphite reinforced PEEK material that provides enhanced mechanical properties and reduced coefficient of friction values.
    PKMT-BLKD85
    Black Medical Technology MT Grade PEEK    		 Min: -50°C
    Max: +260°C

    85 Shore D

    A high-performance black pigmented PEEK material that is suitable for medical applications and has excellent resistance to hydrolysis, superheated steam and is particularly useful for steam autoclaving.
    PKHT-BLKD85
    Black High Temp HT Grade PEK    		 Min: -50°C
    Max: +260°C

    85 Shore D

    A high-performance black pigmented PEK material (commonly referred to as PEEK-HT or Victrex HT™) that is suitable for high temperature applications requiring increased compressive strength and wear resistance while under high thermal load.
    PKST-BLKD86
    Black High Temp ST Grade PEKEKK    		 Min: -50°C
    Max: +260°C

    85 Shore D

    A high-performance black pigmented PEKEKK material (commonly referred to as PEEK-ST or Victrex ST™) that is suitable for high temperature applications requiring increased mechanical properties while under high thermal loads.
    PPS-ND85
    Unreinforced Virgin PPS Polyphenylensulfide    		 Min: —
    Max: +230°C

    85 Shore D

    A high-performance unreinforced virgin PPS (Polyphenylensulfide) material that was developed to bridge the gap between general engineering plastics such as POM/Nylon and the more advanced engineering plastics such as PEEK.
    PPS-GF-D88
    Glass Reinforced PPS Polyphenylensulfide    		 Min: —
    Max: +230°C

    88 Shore D

    A high-performance glass fibre reinforced PPS (Polyphenylensulfide) material that was developed to bridge the gap between general engineering plastics such as POM/Nylon and the more advanced engineering plastics such as PEEK.



    Contact us

    Please contact our technical team should you require any help choosing the correct material for your application or if the material you require is not shown.
